BDF water tank specification | ||||||
Raw material | Composite panel inner SS ,outer HDG | |||||
Panel size | 1000*1000, 1000*500, 500*500 | |||||
Panel thickness | 2mm, 2.5mm, 3mm, 3.5mm,4mm | |||||
Process technique | Ramming craft | |||||
Accessories | Tiepiece, support, flange/socket, ladder, angle iron, water gauge | |||||
Connection type | Bolt nut and gasket | |||||
Working time | More than 10 years | |||||
Tank height(mm) | Thickness of each panel | ||||||||||
Bottom | 1st layer | 2nd layer | 3rd layer | 4th layer | Top | ||||||
1000 | 2.5# | 2.5# | / | / | / | 2# | |||||
1500 | 2.5# | 2.5# | 2.5# | / | / | ||||||
2000 | 3# | 3# | 2.5# | / | / | ||||||
2500 | 3# | 3# | 2.5# | 2.5# | / | ||||||
3000 | 3.5# | 3# | 3# | 2.5# | / | ||||||
3500 | 3.5# | 3.5# | 3# | 2.5# | 2.5# | ||||||
4000 | 3.5# | 3.5# | 3.5# | 3# | 2.5# | ||||||

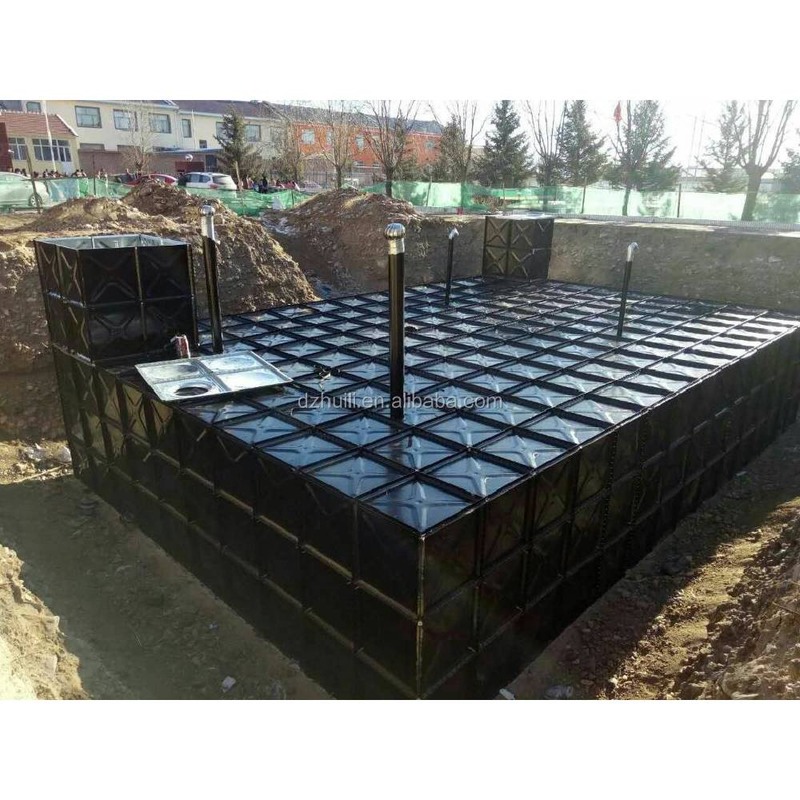

Note:If the BDF tank for underground,all the panel thickness should be 3.5#
Dezhou Huili tank Co., Ltd is a professional production enterprise specializing in the production and design of the water tank, the products are exported to Southeast Asia and Africa, etc.
Company's products include: fiber glass reinforced plastic water tank, stainless steel water tank, enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and underground water tank.
Company tenets: quality first, customer first and best credibility! The same price with best quality, the same quality with highest reputation!
Tank Height(mm) | Thickness of each panel | ||||||||||
Bottom | 1st layer | 2nd layer | 3rd layer | 4th layer | Roof | ||||||
1000 | 3mm | 3mm | / | / | / | 2mm | |||||
1500 | 3mm | 3mm | 3mm | / | / | ||||||
2000 | 3mm | 3mm | 3mm | / | / | ||||||
2500 | 4mm | 4mm | 3mm | 3mm | / | ||||||
3000 | 4mm | 4mm | 3mm | 3mm | / | ||||||
3500 | 4mm | 4mm | 3mm | 3mm | 2mm | ||||||
4000 | 4.5mm | 4.5mm | 4mm | 3mm | 2mm | ||||||
