Hot Dipped Galvanized Steel Hotels Water Tank For Rainwater Collection Underground

1 Cubic Meter
MOQ
$70.00(1 - 49 Cubic Meters) $60.00(>=50 Cubic Meters)
Price
Hot Dipped Galvanized Steel Hotels Water Tank For Rainwater Collection Underground
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Hot Dipped Galvanized Steel
Material: Hot Dipped Galvanized Steel, Q235BQ235carbon Steel
Weight: Customized
Size: Customized
Warranty: 1 Year
Productivity: 50000L/Hour
Weight (KG): 2000 Kg
Color: Silver
Capacity: 0.125M3~2500M3
Function: Storage Water
Type: Bolted Type
Warranty: 1 Year
Product Name: Pressed Hot Dipped Galvanized Steel Panel Water Storage Tank
After-sales Service Provided: Online Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: Plywood, size: 2000x1000x1000 plywood case,lron cage
Supply Ability: 1000 Piece/Pieces per Day
Product Description
Products Description

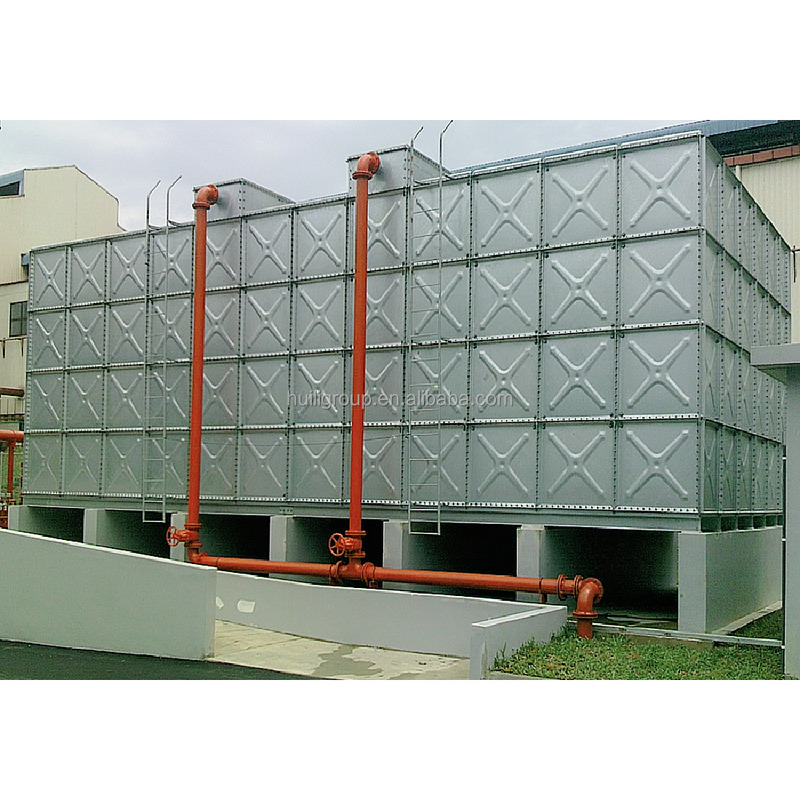

Hot Dipped Galvanized Water Tank

HDG water tank is the short of Hot Dip Galvanized water tank,with 90 μm thick surface zinc coating of Q235 Pressed Steel. Zinc coating can help to prevent rust and corrosion over at least 10 years. HDG water tanks have the most panels types including 1000 x 1000 mm,1000 x 500 mm,500 x 500 mm,1220 x 1220 mm.So HDG water tanks are more flexible and high cost-effective.Meanwhile,the strong steel structure and zinc coating protection has made it available to be used as underground water tank.
Our Advantages

ANTI-CORROSION

The thickness of zinc layer can be up to 70μm, have superior anti-corrosion capability.

DIMENSION FLEXIBILITY

The size of panel can be 1.22*1.22 m, 1*1 m, 1*0.5 m and 0.5*0.5 m, which can assemble kinds of volume from 0.125 m³ to 5000 m³. That’s extremely convenient to select for you.

RELIABLE QUALITY

Our panel comply the standard of Singapore PSB, SGS, China QSB, etc. The life-span can be over 1/4 century.

CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.

DURABLE

Using the 1000 T hydraulic press integrated molding, no welding seam at panel corners.

BURY UNDERGROUND

All the HUILI steel material water tank can be bury underground, the thickness of inner structure and panels are thicker than normal tank.
Details Images
PANEL DIMENSION
WEIGHT OF EACH PANEL
2mm
2.5mm
3mm
4mm
5mm
1*1m
17.4kg
22.7kg
26.6kg
36.2kg
46kg
1*0.5m
9.5kg
12.5kg
14.6kg
19.9kg
25.2kg
0.5*0.5m
5.3kg
6.9kg
8kg
11kg
13.9kg
1.22*1.22m
/
33.6kg
39.3kg
53.7kg
68kg
PHYSICAL PROPERTIES
STANDARD REQUIREMENT
RESULT
Tensile strength
≥350 MPa
509 MPa
Yield strength
≥220 MPa
414 MPa
Elongation
≥23%
24%
TANK HEIGHT (mm)
THICKNESS OF EACH PANEL
Bottom
1st layer
2nd layer
3rd layer
4th layer
5th layer
Roof
1000
3mm
3mm
/
/
/
/
2mm
1500
3mm
3mm
3mm
/
/
/

2000
3mm
3mm
3mm
/
/
/

2500
4mm
4mm
3mm
3mm
/
/

3000
4mm
4mm
3mm
3mm
/
/

3500
4mm
4mm
3mm
3mm
2.5mm
/

4000
5mm
5mm
4mm
3mm
2.5mm
/

4500
5mm
5mm
5mm
4mm
3mm
2.5mm

5000
5mm
5mm
5mm
4mm
3mm
2.5mm

The standard tolerance of thickness is 0.25mm. For example, the actual thickness of 3mm is 2.75mm.
Company Profile
Why Choose Us
Product packaging
FAQ

Q: Are you trading company or manufacture?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to the quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment <= 1000usd="">= 1000USD, 30% T/T in advance, balance before shippment. If you have other questions, pls feel free to contact us as below:
