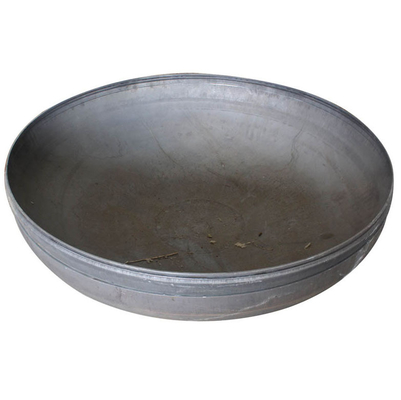

Fire mine 600mm 800mm 900mm torispherical 1000mm elliptical domed head for pressure vessel

10 Pieces
MOQ
$80.00(>=10 Pieces)
Price
Fire mine 600mm 800mm 900mm torispherical 1000mm elliptical domed head for pressure vessel
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: EHA Amy
Technics: Forged
Connection: Welding
Shape: Elliptica
Head Code: Round
Size: 50-10000mm
Thickness: 2mm--300mm
Technology: Cold, Hot Forming;
Standard: ANSI, ASTM, DIN
Certificate: ISO9001, CE, ASME, SGS
Processing: Hot Or Cold Pressing
Surface Treatment: Sand Blasting, Pickling, Mirror Polishing Etc.
Application: Fire Pit , Pressure Vessel Tank
Reduction Ratio: About 10%
Product Name: Standard Elliptical Torispherical Dishedd For Pressure Vessel
Basic Infomation
Certification: ISO9001, CE, ASME, SGS
Model Number: EHA Amy
Payment & Shipping Terms
Packaging Details: 1, Shipment by bulk OD more then 5000mm 2, GP Containers for OD within 2200mm 3, FR Container OD within 4000mm 4, Iron Cage and wooden pallets accordingly. or according to your requirement
Supply Ability: 5000 Piece/Pieces per Month
Product Description

600mm 800mm 900mm 1000mm  elliptical torispherical dished tank head for pressure vessel

 Product Specification:

Material

 Carbon Steel; Stainless Steel;  Aluminum; Exotic Alloys; Special Steel

Size

 50-10000mm

Thickness

 2mm--300mm

Surface Treatment

 1. Intermediate & Final stage Heat Treatments;
 2. Sand / Shot Blasting after Heat Treatment;
 3. Weld Edge Preparation (Manual & Machined)

Reduction ratio

 About 10%

Certificate

 ISO9001, CE, ASME, CSA, SGS

Technology

 1.Cold & Hot forming;
 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres;

Applicable standard

 ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA and GB

Test

 1. Liquid Penetrant Examination;
 2. Ultrasonic Testing;
 3. 100% Radiography Testing of weld seams;
 4. Magnet Particle Examination;
 5. Inspection under various Third party Inspection Agencies
 6. NDT( after forming): DPT, RT, MPI, UT;
 7. NDT: 100% DPT, UT & RT OF weld joint

Custom- made

 Support

Connection

 Welding

Application

 Pressure vessel

Product Show:





The materials we can provide: Carbon steel, Alloy steel, Stainless steel, etc.

We can also process and manufacture according to customers' requirements.



Our ellipsoidal dish end have a variety of sizes and can be processed according to customer's requirements.

Elliptical Head Parameter Table
Nominal
Diameter
(mm)
Total Depth
(mm)
Volume
(m³)
Nominal
Diameter
(mm)
Total Depth
(mm)
Volume
(m³)
Nominal
Diameter
(mm)
Total Depth
(mm)
Volume
(m³)
300 100 0.0053 1100 300 0.198 2600 690 2.5131
350 113 0.008 1200 325 0.2545 2700 715 2.8055
400 125 0.0115 1300 350 0.3208 2800 740 3.1198
450 138 0.0159 1400 375 0.3977 2900 765 3.4567
500 150 0.0213 1500 400 0.486 3000 790 3.817
550 163 0.0277 1600 425 0.5864 3100 815 4.2015
600 175 0.030353 1700 450 0.6999 3200 840 4.611
650 188 0.0442 1800 475 0.827 3300 865 5.0463
700 200 0.0545 1900 500 0.9667 3400 890 5.508
750 213 0.0663 2000 525 1.1257 3500 915 5.9972
800 225 0.0796 2100 565 1.3508 3600 940 6.5144
850 238 0.0946 2200 590 1.5459 3700 965 7.0605
900 250 0.0111 2300 615 1.7588 3800 990 7.6364
950 263 0.13 2400 640 1.9905 ... ... ...
1000 275 0.1505 2500 665 2.2417 7000 1790 46.438



About the packaging of the elliptical head:

Wooden cases, wooden pallet plastic bag or as per customers' requirement.









Our Workshop:







Production Equipment:



Main Product:



About Company:

Shandong Wansteel Deliyuan Steel Co.,ltd is a modern enterprise engaging in the technical research, development and production of abrasive, We mainly produce stainless steel shot, stainless steel cut wire shot, cast steel shot, cast steel grit, steel cut wire shot, aluminium cut wire shot,zinc cut wire shot and copper cut wire shot, silicon carbide, fused alumina, glass beads, zirconia beads and dish heads 100 kinds of abrasive, and provide sicentific and reasonable project for surface treatment of shot and sand blasting.

We can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also

offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

With strong technical force, advanced production and inspection equipment, and established a good cooperation with lots of colleges and design organization for production, study, design. we have passed international quality standard ISO9001. The quality of products has met SAE&ISO international standards. Our products have exported to more than 20 countries and regions and have won a good praise from both domestic and abroad users of shipyard, foundry plant, forging plant, heat treatment plant, steel structure plant, container manufacturer, auto and locomotive manufacturer and stone industries.

Wan Steel cast brand by soul. Serve the world by reputation! Warmly welcome international friends to China for tour and business negotiation. Let’s hand in hand, create brilliant!



Our Team:

FAO:

Q: What's the information should I provide when inquiry?

A: If you have drawings, we will be entirely in accordance with production drawings.

If you do not have the drawing, you can tell me the product data.

There are several important data, such as material, type of head (We have elliptical head, hemispherical head, dished head, flat head, etc.), diameter, thickness, special tolerances or requirements.

We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: What are surface treatment of the product?

A: For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience.

Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc.

We can help you matching the highest quality products with the lowest prices.
