Home /Products/Outdoor Rainwater Tank/Hotels sale SMC GRP food grade hot water tank for rainwater 15000 50000 30000 liter FRP tank panel tank price in Philippines

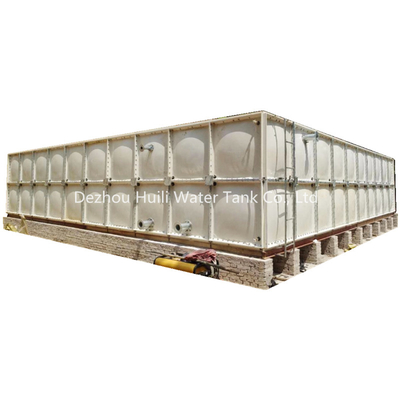

Hotels sale SMC GRP food grade hot water tank for rainwater 15000 50000 30000 liter FRP tank panel tank price in Philippines

1 Cubic Meter
MOQ
$70.00(1 - 9 Cubic Meters) $60.00(>=10 Cubic Meters)
Price
Hotels sale SMC GRP food grade hot water tank for rainwater 15000 50000 30000 liter FRP tank panel tank price in Philippines
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: Philippines, India
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Fiberglass Panel
Material: Fiberglass
Weight: Customized
Size: Customized
Warranty: 1 Year, 1 Year
Productivity: 50000L/Hour
Weight (KG): 3000 Kg
Product Name: SMC GRP Food Grade Water Tank For Rain Water
Process Technique: Sheet Molding Compound
Pccessories: Hot Galvanizing, SS304
Foundation: Concerte Base
Panel Size: 1*1m, 1*0.5m, 0.5*0.5m
Panel Thickness: 5mm To 22mm
Volume: 0.125~5000CBM
Panel Grade: Food Grade
Standard: National Standard
Basic Infomation
Payment & Shipping Terms
Packaging Details: naked packaging or ply wood or iron bracket for fiber glass aquaculture fish water tank
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Product Description

COST-EFFECTIVE

FRP/GRP is a kind of high-technological reinforced plastic. It has low cost and high performance, is a perfect substitute of metal tank.

RELIABLE QUALITY

Our FRP/GRP's raw material are all international famous brand. The life-span can be over 1/4 century.

DIMENSION FLEXIBILITY

The size of panel can be 1*1m,1*0.5m and 0.5*0.5m, which can assembled kinds of volume from 0.125m3 to 5000m3.That's extremely
convenient to select for you.

CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble,the construction drawing, installation video, and a series of complete
installation plan will be provided.

POTABILITY

FRP/GRP material has passed local Water Quality Inspection testing.Test result shows our FRP/GRP are suitable for potable water
reserve. Roof panel adopt upward bulge to prevent rainwater remain on the top. Further prevent mosquito breeding and dirty water
permeate inside the tank.

APPLICATION
1.Potable Water Storage Tanks
2.Agricultural Irrigation Tanks
3.Septic Tanks and Sewage Tanks
4.Distillation and Process Tanks
5.Fire Reserve Storage Tanks, Swimming Pool Balance Tanks
6.Hot Water Storage Tanks and Chemical Substance Storage Tanks
7.Rain Water Harvesting Tanks, Well Water Tanks, Sea Water Tanks
8.Reverse-Osmosis Water Tanks(water with high or low conductivity)
9.Industrial Process Tanks, Chiller Water Tanks, Cooling Tower Water Tanks

PANELS MATERIAL

1.Food grade unsaturated polyester resin
2.Alkali free twist glass fiber roving
3.Thickener (MgO), initiator (curing agent),cross linking agent,etc.
ACCESSORY NAME
OPTIONAL MATERIAL
Bolts & Nuts
Hot dipped galvanized
Stainless steel 304/316
Skid Base
Hot dipped galvanized
Painting
Internal Structure
Hot dipped galvanized
Stainless steel 304/316
Water Indicator
Glass with brass valve
Float type

Sealing Rubber
Food grade white color EPDM
Silicon
Flanges
Hot dipped galvanized
Stainless steel 304/316
PVC

PANELS SIZE & WEIGHT

1.The size of FRP/GRP panel are produced by standard mould, having size 1*1m,1*0.5m and 0.5*0.5m;
2.The panel thickness is depends on tank height;
3.The available highest height is 5 meters (Add external C channel or I-beam reinforcement for 4m and 5m height).
SIZE OF PANEL
WEIGHT OF EACH PANEL
5#
8#
10#
12#
14#
16#
18#
20#
22#
1*1m
12kg
17.5kg
21kg
25kg
29kg
33kg
37kg
41kg
45kg
1*0.5m
7kg
9kg
11kg
13kg
15kg
17kg
19kg
21kg
23kg
0.5*0.5m
4.5kg
4.8kg
5.8kg
6.7kg
7.5kg
8.5kg
9.5kg
/
/
TANK HEIGHT (mm)
THICKNESS OF EACH PANEL
Bottom
1st layer
2nd layer
3rd layer
4th layer
5th layer
Roof
1000
10#
10#
/
/
/
/
5#
1500
10#
10#
8#
/
/
/
2000
12#
10#
8#
/
/
/
2500
12#
12#
10#
8#
/
/
3000
14#
12#
12#
8#
/
/
3500
16#
14#
12#
10#
8#
/
4000
18#
18#
14#
12#
10#
/
4500
20#
18#
14#
12#
10#
8#
5000
22#
20#
16#
12#
10#
8#
PHYSICAL PROPERTIES
STANDARD REQUIREMENT
RESULT
Tensile strength
≥60 MPa
67 MPa
Bending strength
≥120 MPa
186 MPa
Bending modulus
≥10 GPa
12 GPa
Pap hardness
≥60 HBa
64 HBa
Bibulous rate
≤0.5%
0.11%
Glassfiber content
≥25%
30%


According to GRP sectional water tank capacity,our engineer will provide detailed drawing for your reference.

Customers just need to provide concrete base according to our drawing.

Our water tank quotation includes all panels and accessories and C-channel base and some spare parts.
