Home /Products/Plastic Rainwater Tanks/Hotels Rain Storage Water Tank Price GSC BDF Large Capacity Plastic Rectangular Bottom Water Storage Tank

Hotels Rain Storage Water Tank Price GSC BDF Large Capacity Plastic Rectangular Bottom Water Storage Tank

1 Cubic Meter
MOQ
Hotels Rain Storage Water Tank Price GSC BDF Large Capacity Plastic Rectangular Bottom Water Storage Tank
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Steel Panel
Material: Steel, Carbon Steel
Weight: Customized
Size: Customized
Warranty: 1 Year
Productivity: 50000L/Hour
Weight (KG): 2000 Kg
Product Name: Rain Storage Underground Water Tank Price
Function: Potable Water Storage
Capacity: 0.125-1500 CBM
Panel Size: 1*1m,1*0.5m,0.5*0.5m
Connection Way: Bolted Connection
Panel Thickness: 2.8# And 3.4#
Certification: ISO9001:2008
Process Technique: Ramming Craft
Accessories: Inside Is SS304 And Outside Is Hot Dip Galvanzied Steel
Basic Infomation
Certification: ISO9001:2008
Payment & Shipping Terms
Packaging Details: Iron pallet ,polywood box,naked packed for food grade 5000 litre sectional bolted underground drinking water storage tanks
Supply Ability: 10000 Cubic Centimeter/Cubic Centimeters per Month
Product Description
Products Description

What is GSC Water Tank?

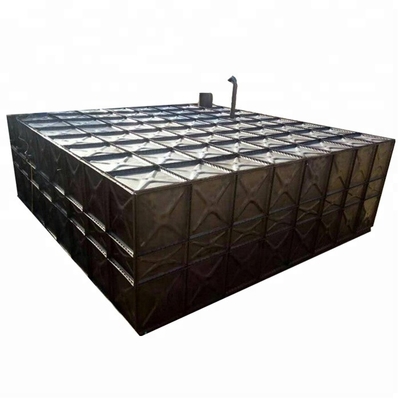

GSC modular water tank is Galvanized and Stainless Steel Compound water tank.Made from 3 types of raw materials.Inner is stainless steel plate and outer is hot dip galvanized plate with one layer of high modular materials sandwiched.High pressure and high temperature to form this new type of compound plate.Because of inner stainless steel plate and outer steel structure,it has the advantages of storing drinking water. GSC modular water tank could be applied either ground or underground used for rainwater colletion, which effectively solved tight earth issues by underground water tank application.
Our Advantages

ANTI-CORROSION

GSC water tank inner stainless steel materials,outer hot dip galvanized materials,which decides the good anti-corruption from outside and drinking water storage from inside.

RELIABLE QUALITY

This panel is new type of materials,meet drinking water use and mainly used underground,overground for its better structure.

DIMENSION FLEXIBILITY

The size of panel can be 1.22*1.22 m, 1*1 m, 1*0.5 m and 0.5*0.5 m, which can assemble kinds of volume from 0.125 m³ to 5000 m³. That’s extremely convenient to select for you.

CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.

DURABLE

Using the 1000 T hydraulic press integrated molding, no welding seam at panel corners.

BURY UNDERGROUND

All the HUILI steel material water tank can be bury underground, the thickness of inner structure and panels are thicker than normal tank.
Details Images
TANK HEIGHT
THICKNESS OF EACH PANEL
Height
Bottom Board
Side 1
Side 2
Side 3
Side 4
Side 5
Top board
1000 mm
3 mm
3 mm
/
/
/
/
2 mm
1500 mm
3 mm
3 mm
3 mm
/
/
/

2000 mm
3 mm
3 mm
3 mm
/
/
/

2500 mm
4 mm
4 mm
3 mm
3 mm
/
/

3000 mm
4 mm
4 mm
3 mm
3 mm
/
/

3500 mm
4 mm
4 mm
3 mm
3 mm
2.5 mm
/

4000 mm
5 mm
5 mm
4 mm
3 mm
2.5 mm
/

4500 mm
5 mm
5 mm
5 mm
4 mm
3 mm
2.5 mm

5000 mm
5 mm
5 mm
5 mm
4 mm
3 mm
2.5 mm

PANEL DIMENSION
WEIGHT OF EACH PANEL
2 mm
2.5 mm
3 mm
3.5 mm
4 mm
5 mm
0.5*0.5m
6 kg
7.5 kg
9 kg
10.5 kg
12 kg
13.5 kg
1*0.5m
11 kg
13.5 kg
16.5 kg
19 kg
22 kg
24 kg
1*1m
19 kg
24 kg
29 kg
34 kg
39 kg
43 kg
Physical properties
Standard requirement
Result
Tensile strength
≥350 MPa
405 MPa
Yield strength
≥220 MPa
296 MPa
Elongation
≥23%
24%
Company Profile
Why Choose Us
Product packaging
FAQ

Q: Are you trading company or manufacture?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to the quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment <= 1000usd="">= 1000USD, 30% T/T in advance, balance before shippment. If you have other questions, pls feel free to contact us as below:
