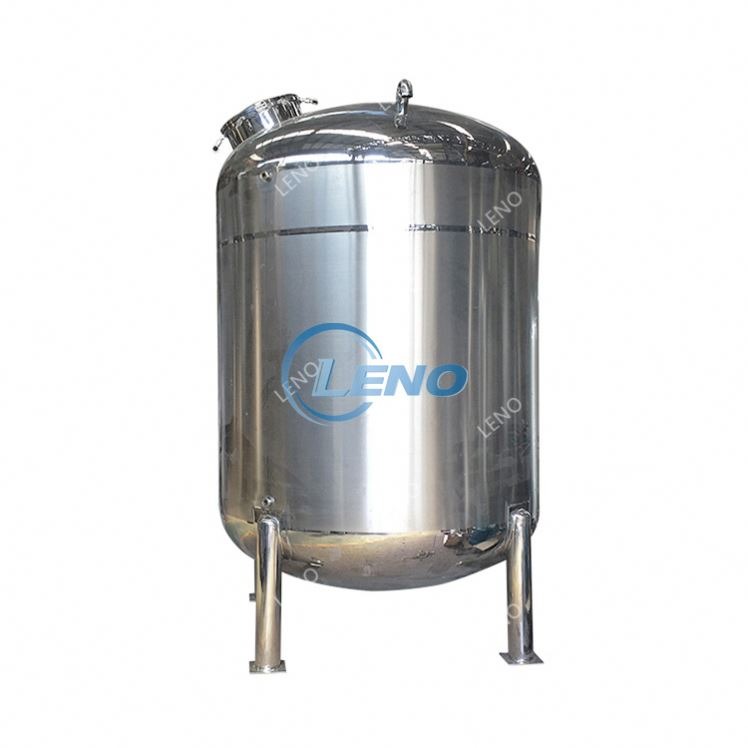

| Pharmaceutical grade water tank ethanol storage tank design for beverage processing | |||
| Profile type | Single layer tank | Double layer tank | Three layer tank |
| material | SS304 or SS316L | ||
| Volume | 50L-20T (Customized) | ||
| Pressure | Vacuum-1Mpa | ||
| Tank Type | Vertical type or Horizontal type | ||
| Structure | one layer | Inner layer+jacket | inner layer+jacket+insulation |
| Cooling way | No | ice water /cooling water | ice water /cooling water |
| heating way | No | electric/steam heating | electric/steam heating |
| Agitator type | No | low speed | High speed |
| No | 0-200RPM | 960-3400RPM | |
| PARTS DETAILS | 1.Quick open manhole / Pressure manhole | ||
| 2.Various types of CIP cleaners | |||
| 3.Sterile respirator | |||
| 4.Adjustable Legs | |||
| 5.Inlet and Outlet sanitary valve | |||
| 6.Thermometer (According to customer requirements ) | |||
| 7.Paddle blender .(According to customer requirements) | |||
| 8.Liquid level meter and lever controller (According to customer requirements) | |||
|
9.Ladder |
|||
Application:
Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.
a. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
b. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
c. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
d. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.
| Model | Effective volume(L) | Dimension of tank (D*H)(mm) | Total Height(mm) | Motor power(kw) | Agitator speed(r/min) |
| LNT-500 | 500 | Φ800x900 | 1700 | 0.55 |
63
|
|
LNT-1000 |
1000 | Φ1000x1200 | 2100 | 0.75 | |
| LNT-2000 | 2000 | Φ1200x1500 | 2500 | 1.5 | |
| LNT-3000 | 3000 | Φ1600x1500 | 2600 | 2.2 | |
| LNT-4000 | 4000 | Φ1600x1850 | 2900 | 2.2 | |
| LNT-5000 | 5000 | Φ1800x2000 | 3150 | 3 | |
| LNT-6000 | 6000 | Φ1800x2400 | 3600 | 3 | |
| LNT-8000 | 8000 | Φ2000x2400 | 3700 | 4 | |
| LNT-10000 | 10000 | Φ2100x3000 | 4300 | 5.5 | |
| We can customize the equipment according to customers' requirment. | |||||
1.Q:Are you trade or manufacturer ?
A : We are a factory with an international sales company specialized in support for global distributors.
2.Q:How long is the service time?
A:It could use several year without external force factors.We have 1 year warranty.
3.Q:What is the payment terms?
A:We accept T/T and L/C,also can use alibaba trade assurance.
4.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customers).
5.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
